Simerics Pumplinx Hex Mesh Tutorial

Simerics Pumplinx sometimes doesn’t do a a good job in the help describing certain task such as Hex template meshing.  Here is some graphics that may help.

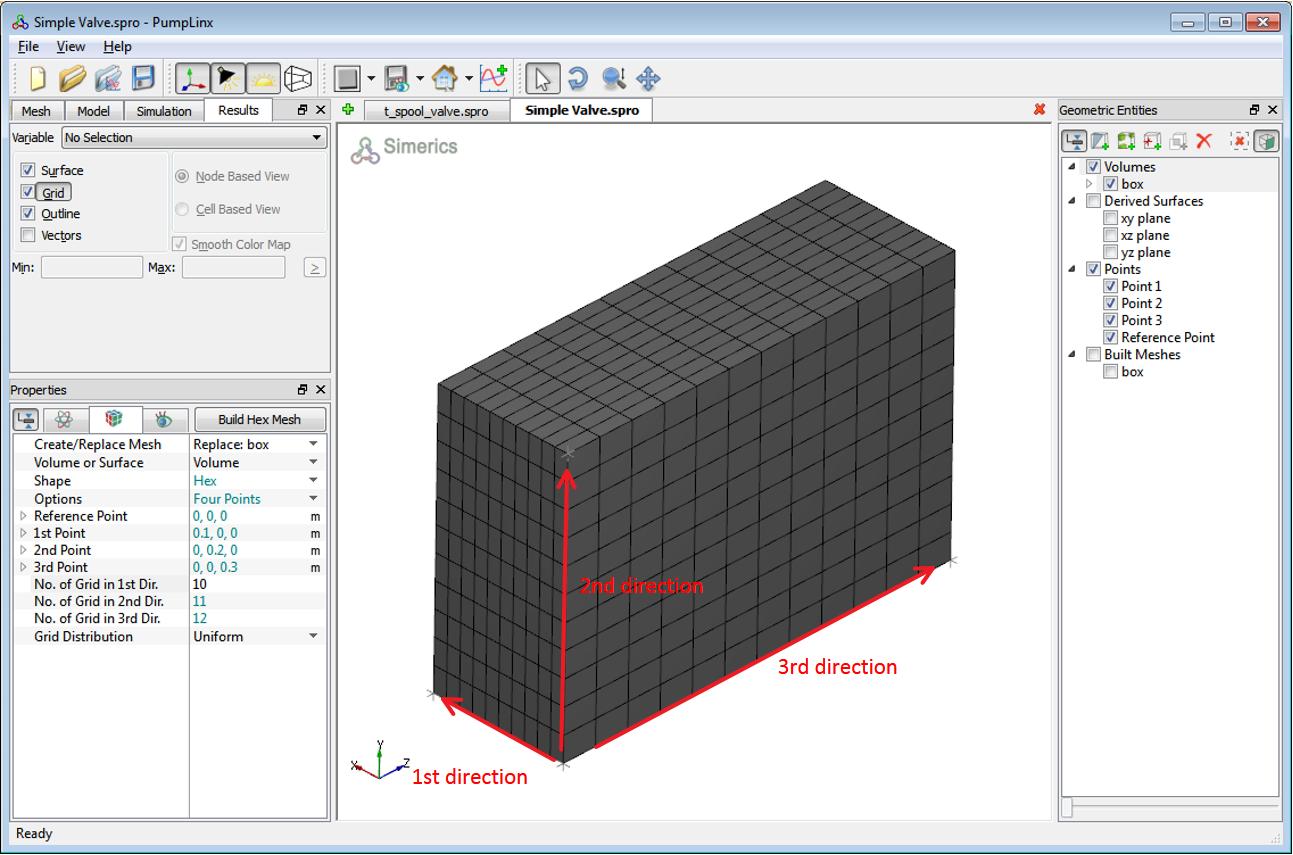

Mesh direction relationships. 1st direction points towards first point. 2nd direction point, etc.

Here are the files: Hex Mesh.zip
